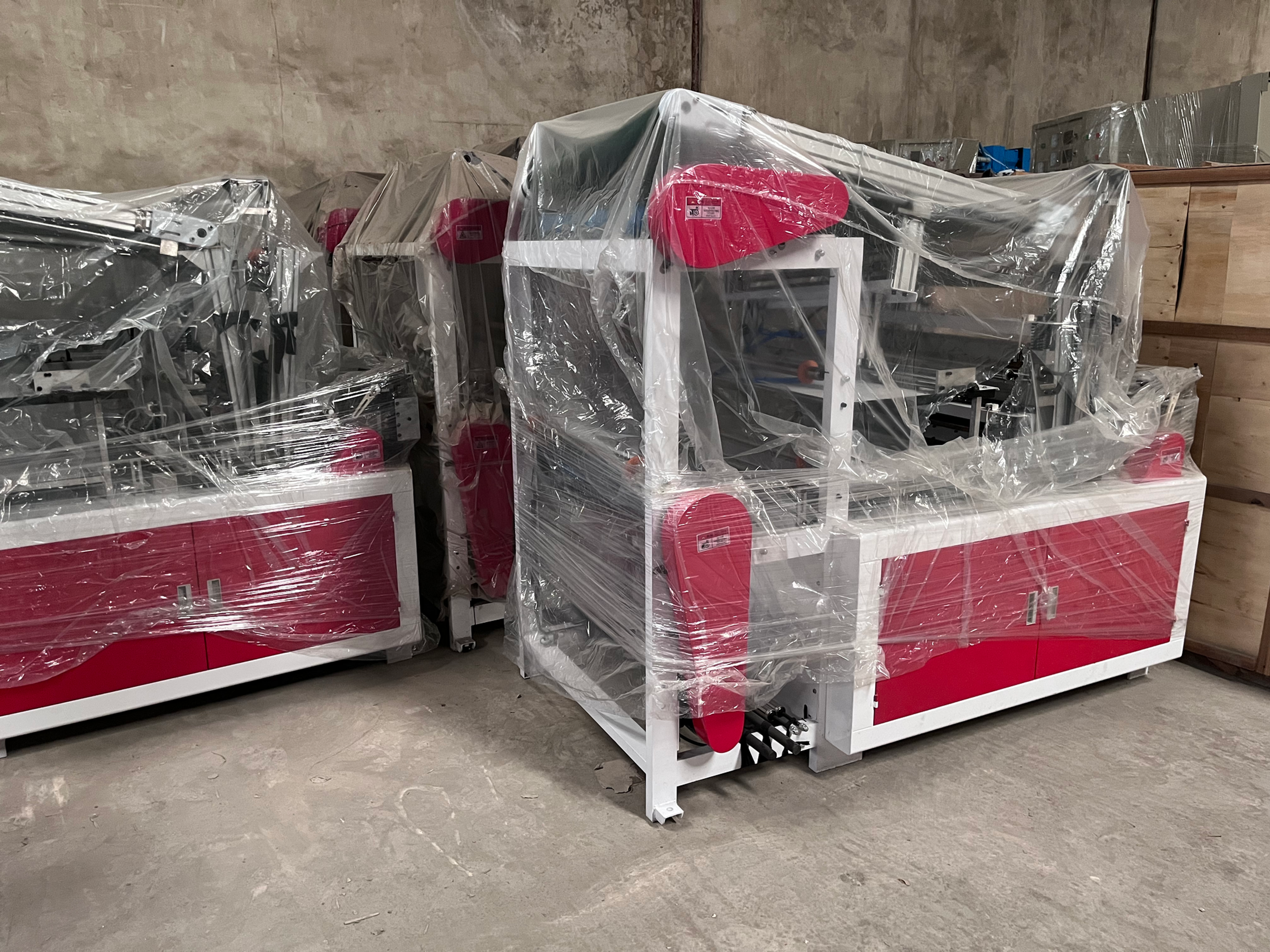

QGF-900 Bag Making Cutting and Sealing Machine

QGF-900 Bag Making Cutting and Sealing Machine


Product Application:
This machine is High Speed full Automatic T-shirt Bag Making Machine applied to manufacturing and printing

the uncolored vest bags made of HDPE, LDPE roll film. It is automatically controlled by the computer

completely. The user can optional it by the touch panel (PLC)
It is Operated by the computer monitor, it will stop the machine immediately whenever any abnormality

occurs. The abnormal codes and solutions will be displayed on the touch panel. It helps to reduce the

confusion of repair.
double servo (step) motor fixed length and the liquid crystal touch screen actual display to finish the

feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of

automation and good economic result.

Quick Detail:
a. LDPE.HDPE hot sealing hot cutting t-shirt bag making
b. Full automatic controlled by the computer (or touch screen) completely
c. Two sealing knifves. Two photocell. Two auto punching cylinders.two step motor (servo motor )

and driver feeding, inveter controller
e. Equipped the multi auto alarms with automatic stop design.
f. Automatic puching cylinder make handle bag in line

THis machine is High Speed full Automatic T-shirt Bag Making machine


    Model GFQ-600 GFQ-700 GFQ-900 GFQ-1000
    Bag making width 550mm 650mm 850mm 1000mm
    Bag making length 1600mm 1600mm 1600mm 1600mm
    Bag making thickness 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm
    Bag making speed 40-120pcs/min 40-120pcs/min 40-120pcs/min 40-120pcs/min
    error in length +-1mm +-1mm +-1mm +-1mm
    Total power 4kw 4.2kw 5kw 7.2kw
    Weight of machine 700kg 760kg 900kg 1100kg
    Dimension L*W*H 3100*1100*1800mm 3100*1200*1800mm 3200*1400*1850mm 3200*1600*1850mm
